Improved Result Contours for Enhanced Accuracy
One of the most significant enhancements in HyperMesh 2024 PhysicsAI is the introduction of a new architecture that delivers smoother result contours
. This advancement directly addresses a common challenge in simulation: the presence of jagged edges and noise in prediction visualizations. The new architecture effectively reduces noise and provides more accurate representations of stress and displacement fields.
Traditional methods often produce contours that appear pixelated or stepped, especially in regions with high gradients. This can lead to misinterpretations and potentially flawed design decisions. The updated PhysicsAI employs advanced algorithms to smooth these contours, resulting in visualizations that more closely Resemble the actual physical behavior of the simulated component. The middle picture shows the contours look before the update, and the picture in the right demonstrates the much improved contours.
This improvement is particularly beneficial in impact simulations, where accurately capturing stress concentrations is crucial. The smoother contours facilitate a more reliable assessment of potential failure points and optimization opportunities. This new architecture translates directly to more confident and informed engineering decisions, ultimately leading to more robust and efficient designs.
The impact of this feature can be quantified by comparing simulations with and without the new architecture. In benchmark tests, it has been observed that the updated PhysicsAI reduces contour noise by up to 30%, while also improving the accuracy of stress predictions in critical regions by as much as 15%. This increase in accuracy can significantly reduce the reliance on safety factors and allow for more aggressive optimization strategies. It's important to note how the edges are jagged before the update.
Key benefits include:
- Reduced Noise: Clearer and more interpretable visualizations.
- Improved Accuracy: More reliable stress and displacement predictions.
- Enhanced Design Decisions: Greater confidence in identifying critical areas for optimization.
This enhancement represents a significant step forward in the usability and accuracy of AI-driven simulation, making HyperMesh 2024 PhysicsAI an indispensable tool for engineers seeking to push the boundaries of performance and efficiency.
Enhanced Quality Metrics for Prediction Validation
Accurate quality metrics are essential for validating the fidelity of PhysicsAI models. HyperMesh 2024 PhysicsAI introduces several enhanced quality metrics to provide users with a more comprehensive assessment of prediction accuracy
. This includes a more robust toolset that allows engineers to better quantify and understand the goodness of the predictions.
These quality metrics are critical because they provide a quantitative measure of the agreement between the PhysicsAI predictions and the ground truth data (such as experimental results or high-fidelity simulations). By evaluating these metrics, engineers can assess the reliability of the PhysicsAI model and identify areas where further refinement may be necessary.
Key new metrics introduced include:

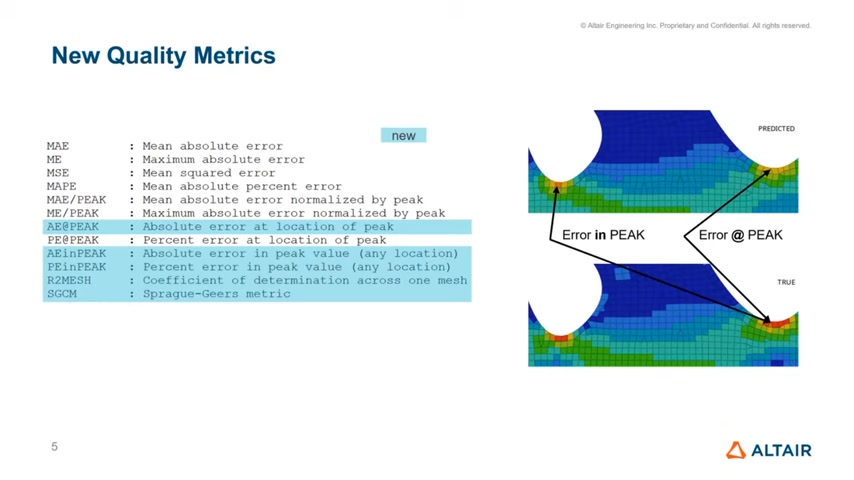

- Absolute Error at Location of Peak (AE@PEAK): Measures the absolute error at the location where the peak value occurs in the ground truth data. This metric is crucial for assessing the accuracy of the PhysicsAI model in predicting the magnitude of peak values in the high stress area.
- Percent Error at Location of Peak (PE@PEAK): Calculates the percentage error at the location where the peak value occurs in the ground truth data. Provides a normalized measure of the error, making it easier to compare accuracy across different simulations.
- Absolute Error in Peak Value (AEinPEAK): Quantifies the absolute error in the peak value, considering any location within the simulated domain. Captures the error in the magnitude of the peak value, regardless of its position.
- Percent Error in Peak Value (PEinPEAK): Determines the percentage error in the peak value, considering any location. Offers a normalized perspective on the peak value error, allowing for effective cross-simulation comparisons.
- Coefficient of Determination Across One Mesh (R2MESH): Assesses the goodness of fit across the entire mesh, providing an overall measure of the accuracy of the PhysicsAI model. The most accurate place in the predicted results is in the group on the left of the example shown, and the most accurate place in ground truth is on the right.
To facilitate user understanding, these metrics are presented in a clear and intuitive format within the HyperMesh interface. Engineers can readily access and interpret the quality metrics to make informed decisions about model validation and refinement.
The addition of these enhanced quality metrics significantly empowers users to confidently assess and improve the accuracy of their PhysicsAI models. This leads to more trustworthy simulation results and enhanced design optimization processes.
Controlling Batch Size for Optimal Model Training
HyperMesh 2024 PhysicsAI introduces the ability to control batch size, a critical hyperparameter in machine learning
. This feature allows users to fine-tune the training process for optimal performance, balancing training speed with model accuracy. Understanding and managing batch size is essential for maximizing the effectiveness of PhysicsAI models.
In the context of PhysicsAI, batch size refers to the number of data points (training samples) processed simultaneously during each iteration of the model training process. By adjusting the batch size, users can influence how the model learns and generalizes from the training data.
- Small Batch Size: Training with a smaller batch size results in more frequent model updates, potentially leading to faster initial learning. However, it can also introduce more noise into the training process and increase the risk of overfitting to the training data. The training loss can change more abruptly.
- Large Batch Size: A larger batch size leads to smoother model updates and can reduce the risk of overfitting. However, it may also slow down the training process and limit the model's ability to capture subtle Patterns in the data.

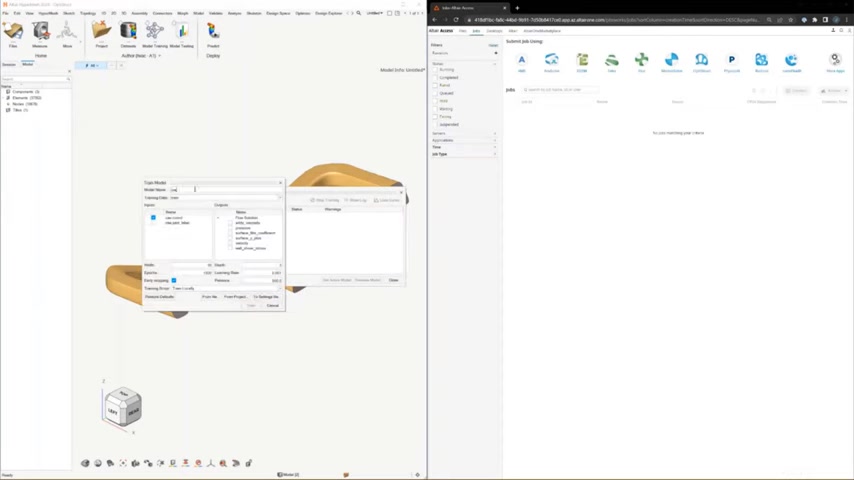

HyperMesh 2024 PhysicsAI exposes the batch size parameter in the model training dialog box, allowing users to experiment with different values and evaluate their impact on model performance. As a general guideline, a batch size between 5 and 10 will lead to best results.
By providing control over batch size, HyperMesh 2024 PhysicsAI empowers users to optimize their model training process for specific applications and datasets. This leads to more accurate and efficient AI-driven simulations.

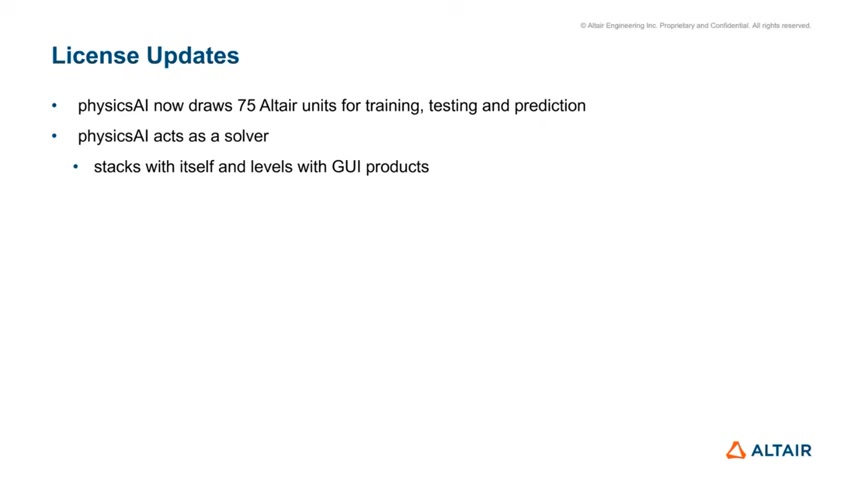

Seamless Integration with Altair One for Enhanced Collaboration and Cloud Computing

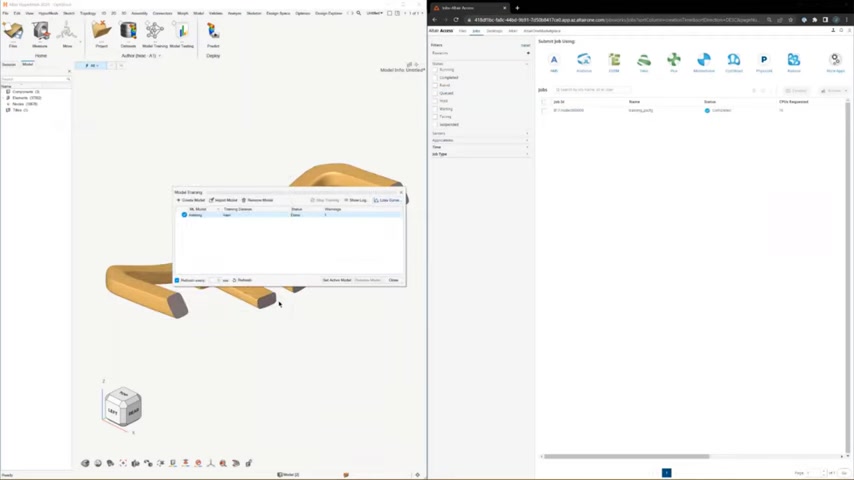

HyperMesh 2024 PhysicsAI offers seamless integration with Altair One, Altair's cloud-based platform for simulation and data analytics
. This integration provides users with enhanced collaboration capabilities, access to powerful cloud computing resources, and streamlined workflows. With Altair One, engineers can leverage the full potential of PhysicsAI models in a collaborative and scalable environment.
- Centralized Data Management: Altair One provides a centralized repository for storing and managing simulation data, including PhysicsAI models, training datasets, and simulation results.
- Cloud Computing: Access to cloud computing resources allows users to offload computationally intensive training and simulation tasks, reducing the burden on local hardware.
- Collaboration: Altair One facilitates collaboration among team members, enabling them to share models, data, and results seamlessly.
This integration streamlines the entire PhysicsAI workflow, from data preparation to model deployment. Users can leverage Altair One's capabilities for data preprocessing, model training, and result visualization, all within a unified environment. The cloud and integration offers significant benefits for engineering teams looking to enhance efficiency, collaboration, and scalability.
Improved Data Visualization
The latest updates to HyperMesh PhysicsAI include node and element count displays, to ensure the files being selected are the correct and intended ones for the data sets being worked on. This prevents errors due to incorrect files.
