DTF Printing: A Comprehensive Guide to Black Knockouts

Direct to Film (DTF) printing has revolutionized the apparel industry, offering vibrant, durable, and flexible solutions for garment decoration. However, creating professional-quality DTF prints requires careful attention to detail. One critical aspect of DTF printing is achieving a black knockout with proper halftones to ensure breathability and visual appeal. This guide delves into the techniques for creating such designs, focusing on image preparation, upscaling, and printing considerations to help you achieve excellent results in every DTF project.

What is DTF Printing?

Direct to Film (DTF) printing is a method where designs are printed onto a special film and then transferred onto garments using heat and pressure.

This process allows for vibrant colors, detailed images, and excellent durability, making it a popular choice for custom apparel, promotional items, and various textile applications. DTF printing supports a wide variety of fabrics including cotton, polyester, blends, and more.

However, printing large, solid areas of color, especially black, can pose challenges. Solid blocks of ink reduce breathability and can feel heavy and uncomfortable to wear. This is where the concept of a black knockout comes into play.

A black knockout involves strategically removing the black ink from areas of the design where it is not essential, revealing the underlying Fabric. The goal is to reduce ink coverage without sacrificing the visual integrity of the design. Achieving this requires a combination of image manipulation techniques and an understanding of halftone Patterns.

By creating a black knockout combined with proper halftones, you can achieve a print that is both visually appealing and comfortable to wear. Breathability is key to user satisfaction and repeat sales. Properly executed DTF printing techniques will separate your products from the competition. High quality DTF relies on technique as much as on equipment and materials.

The Importance of Halftones for Breathability

Halftones are essential for creating gradients and shading effects in DTF printing while maintaining breathability. Instead of printing solid areas of ink, halftones use small dots of varying sizes to simulate different shades of color. The smaller and more sparsely distributed the dots, the lighter the shade appears.

The strategic use of halftones not only enhances the visual complexity of the design but also significantly reduces the amount of ink deposited on the fabric. This allows air to circulate through the garment, improving comfort, especially in warm weather. A design with a good balance of black knockout and halftone areas is less likely to feel stiff or plasticky. A shirt designed to incorporate good breathability will ensure that it is worn more often. This in turn is beneficial for branding.

Achieving the right halftone effect requires careful adjustment of image levels and the use of appropriate halftone screens during the image preparation process. Let's explore the steps involved in creating a DTF print with a breathable and visually striking design.

Step 1: Image Upscaling for Enhanced Detail

Before beginning the design process, it’s crucial to ensure that your image is of high enough quality for printing. Low-resolution images can result in pixelated and blurry prints, so upscaling is often necessary. Several software tools are available for image upscaling, one of which is Upscayl. This is particularly useful for AI-enhanced graphic manipulation.

To upscale an image using Upscayl:

1. Download and install Upscayl from its official website.
2. Open the Upscayl application.
3. Drag and drop your image file into the Upscayl interface.
4. Select the appropriate upscaling settings. For DTF printing, a 2x or 4x upscale is generally sufficient.
5. Click the “Upscayl!” button to begin the upscaling process.
6. Once completed, the upscaled image will be saved in the specified output folder.

Upscaling will enhance the image resolution and Clarity, making it easier to work with in subsequent design steps. It helps reduce pixelation and ensures that finer details are preserved in the final print. Always make sure the tools are appropriately configured for the job. Improper setup will lead to poor results. Always ensure the final image is crisp and clean.

Step 2: Converting to Grayscale and Adjusting Levels

After upscaling, the next step is to convert the image to grayscale and adjust its levels. This is necessary for creating a black knockout and implementing halftone effects. Adobe Photoshop is a popular choice for this task.

1. Open your upscaled image in Photoshop.

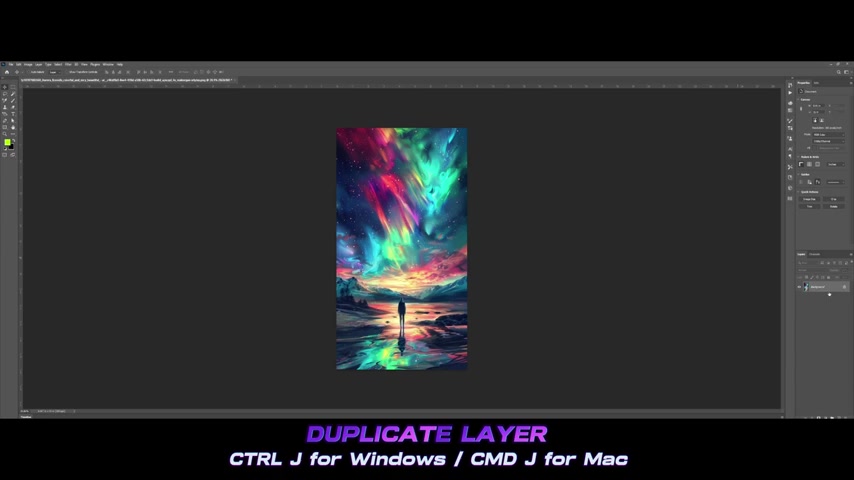

2. Duplicate the layer by pressing Ctrl+J (Cmd+J on Mac) or right-clicking on the layer and selecting “Duplicate Layer.”



3. Right-click the new layer and then click duplicate to new document.

4. Navigate to Image > Mode > Grayscale to convert the duplicated layer to grayscale. Discard any color information when prompted.

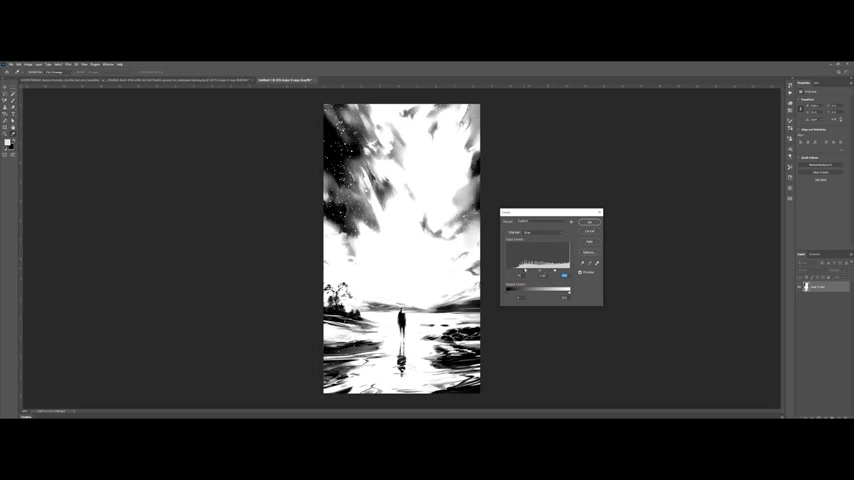

5. Adjust the image levels by going to Image > Adjustments > Levels. This will open the Levels dialog box.

6. In the Levels dialog box, you can adjust the black, white, and gray input levels to achieve the desired contrast and brightness.

7. Move the black input level slider to the right to darken the shadows. This will increase the amount of black ink that is knocked out.

8. Move the white input level slider to the left to brighten the highlights. This will increase the amount of white space in the halftone pattern.

9. Adjust the gray input level slider to fine-tune the midtones.

10. Click “OK” to apply the levels adjustment.

Experiment with different levels settings to achieve the best balance between contrast and detail. The goal is to create a grayscale image that accurately represents the tonal range of the original design while making it suitable for creating a black knockout.

Step 3: Applying Halftone Screen

With the grayscale image prepared, the next step is to apply a halftone screen. This process converts the grayscale image into a pattern of dots that simulate different shades of gray.

1. Ensure that your grayscale layer is set to 300 pixels per inch.



2. Navigate to Image > Mode > Bitmap.

3. In the Bitmap dialog box, select “Halftone Screen” from the Method drop-down menu.

4. Click “OK” to proceed to the Halftone Screen settings.

5. In the Halftone Screen dialog box, configure the following settings:

   • Frequency: 35 lines per inch (LPI). This setting determines the density of the halftone dots.
   • Angle: 22 degrees. This setting determines the angle at which the halftone dots are arranged.
   • Shape: Round. This setting determines the shape of the halftone dots.

6. Click “OK” to apply the halftone screen.

7. Select all and copy.

8. Navigate back to the image you duplicated earlier and add a layer mask.

9. Paste the halftone to the layer mask.

These settings are a good starting point, but you may need to adjust them depending on the specific design and printing equipment. After applying the halftone screen, your image will consist of a pattern of black dots on a white background. The size and density of these dots will vary depending on the tonal values in the original grayscale image.

Experiment with different frequency, angle, and Shape settings to achieve the desired halftone effect. By using a high-quality DTF supplier, you can fine tune this process and achieve stunning results.

Step 4: Completing the Design and DTF Printing

After creating the black knockout and applying the halftone screen, the final step is to complete the design.

1. Delete the background layer.
2. Save the file as a transparent png.

Now the image is ready to print.
