Meshy AI: Transforming Images into 3D Models Effortlessly

In today's digital landscape, 3D modeling is becoming increasingly important for various applications, from gaming and animation to product design and 3D printing. Meshy AI emerges as a powerful tool that simplifies the creation of 3D models from simple images and text prompts. This article explores the process of using Meshy AI to transform images into detailed 3D models, optimize them for 3D printing, and highlights the platform's key features.

Exploring the Free Trial and Account Setup

The initial step into the world of Meshy AI involves setting up an account and exploring the capabilities offered during the free trial. This trial provides a limited number of credits that allow users to test various features, including text-to-3D and image-to-3D conversions.

To showcase the process, it’s often recommended to use an alternate account to simulate the experience of a new user. During the free trial, explore the various plan options to understand the differences in credits, task queueing priority, and available features.

Note: Always check the terms and conditions of the free trial to understand its limitations and duration. It is also important to observe the recommended input guidelines to maximise the platform's effectiveness and the detail of your final print.

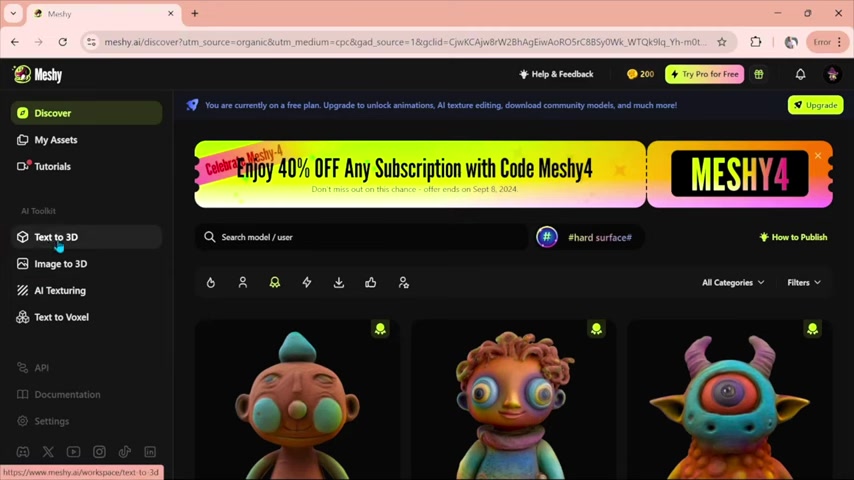

Navigating the Meshy AI Interface: Text to 3D

Meshy AI offers the functionality to generate 3D models based on text prompts. This feature, labeled 'Text to 3D,'

lets you type in a description of the object you want to create, and the AI generates a corresponding 3D model. The accuracy and detail of the generated model often depend on the Clarity and specificity of the text Prompt. Experimentation with prompts is highly encouraged to achieve the desired results.

When using Text to 3D functionality, it’s important to:

1. Provide Clear and Specific Prompts: Describe the object in detail.
2. Experiment with Different Styles: Try different artistic styles such as realistic or sculpture to vary the results.
3. Utilize Hard Surface Prompts: Use a prompt with “hard surface” included if that is what you are trying to achieve.

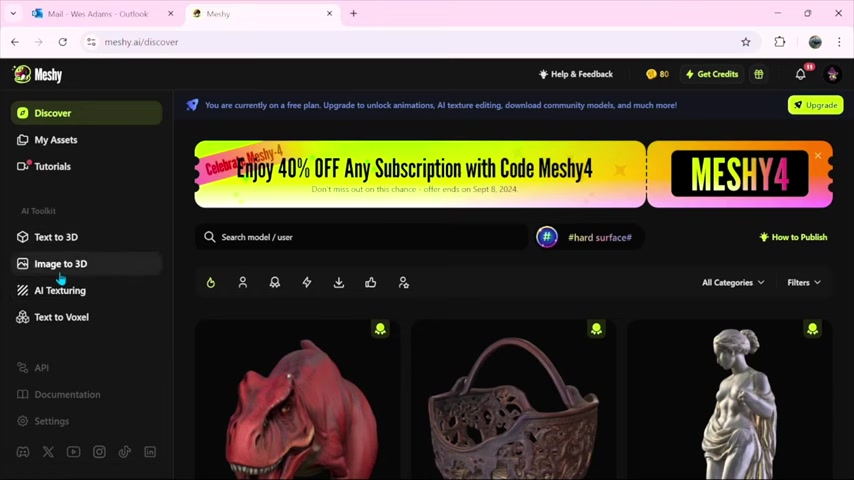

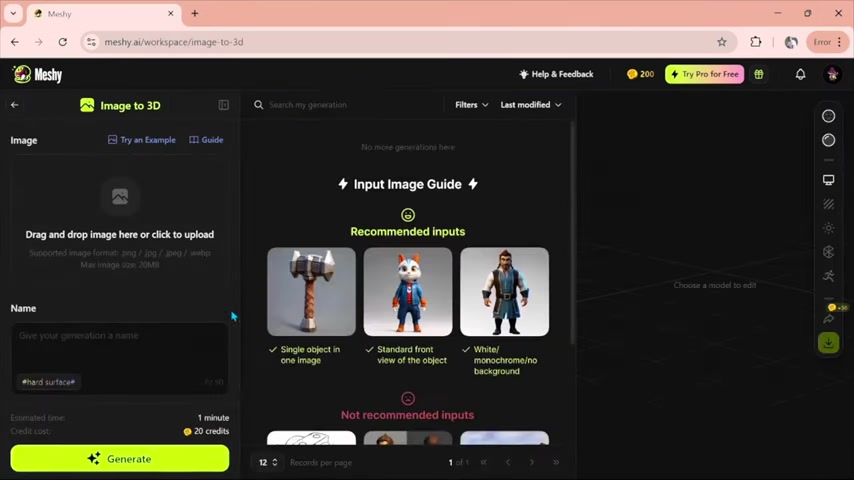

Converting Images to 3D Models: Image to 3D

The 'Image to 3D' conversion is a core feature of Meshy AI. This allows you to upload an image, and the AI converts it into a 3D model.

It is essential to ensure that the image is as straight-on as possible. Images taken from an angle can still work, but the model's accuracy may be compromised. Click on the image upload area and select the desired image from your computer. Once uploaded, the image appears in the designated area, and you can give your generation a name and click generate.

To get better results when converting images to 3D models:

• Use High-Quality Images: High-resolution images yield better results.
• Ensure Proper Lighting: Well-lit photos often produce clearer 3D models.
• Use Front-Facing Images: Images should be as head on as possible.

Using Slicing Software

Slicing software prepares the 3D model for printing. These slicers convert the 3D model into a series of layers that the 3D printer can understand and create.

Follow these steps to prepare your model for printing:

1. Import the STL File: Launch your preferred slicing software (e.g., Cura, Simplify3D, Bambu Studio) and import the STL file you exported from Blender.
2. Adjust Orientation: Orient the model to minimize the need for supports. In this case, you want to have the flat surface on the build plate to avoid any needed supports touching your face.
3. Set Print Settings: Configure the print settings such as layer Height, infill density, printing speed, and temperature. Lower layer heights (e.g., 0.1mm to 0.2mm) can provide finer details.
4. Add Supports (If Necessary): Generate supports only if they are essential for overhanging structures.
5. Slice the Model: Slice the model to generate the G-code, which contains the instructions for the 3D printer.
6. Save the G-code: Save the G-code file to your SD card or preferred storage medium.

The G-code file is now ready to be transferred to your 3D printer for printing. Remember that print settings may vary depending on your printer and the material you’re using. It may require some fine tuning of the settings for optimal printing results.

3D Printing and Post-Processing

The final step is to print the model and perform any necessary post-processing to achieve the desired final product.

To complete this step:

1. Print the Model: Load the G-code file onto your 3D printer and start the printing process. Monitor the print to ensure that it is proceeding smoothly.
2. Remove Supports (If Any): Carefully remove any supports, minimizing damage to the model's surface.
3. Post-Process: Post-processing may include sanding, filling gaps, and painting the model to achieve a polished look.

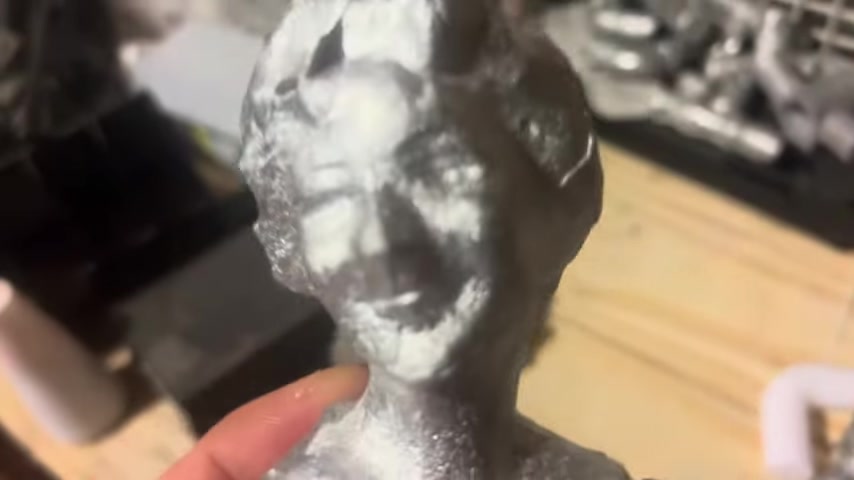

While the example model has casting seams where the mold broke, these can be removed during post-processing with some elbow grease. The final product will require some clean up, however, you are on your way to having a 3D printed model!

Exporting Models from Meshy AI

Meshy AI provides several export options for your models. To retain the textures applied by Meshy AI, export the model in .Blend format. This format is compatible with Blender, a free 3D creation software.

Other formats, such as STL, may only export the physical Shape without the associated textures, which can be limiting if you wish to maintain a more detailed model.

Exporting the model to .blend format ensures that critical details like eyebrows, eyes, and other facial features are preserved, providing a more complete and visually appealing result.

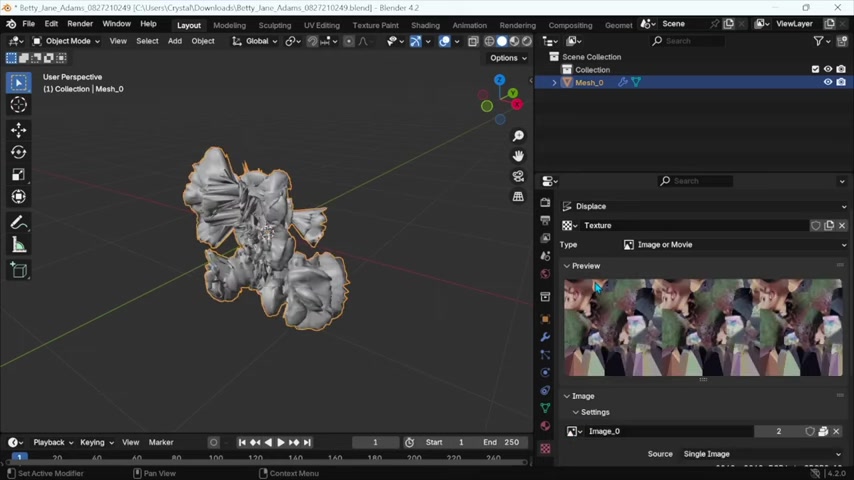

Importing and Modifying the 3D Model in Blender

Blender is a powerful, free software that allows further refinement of 3D models. Once the model is exported from Meshy AI in .blend format, import it into Blender.

The goal here is to enhance the model's details and prepare it for 3D printing.

Follow these steps to refine your model:

1. Open Blender: Launch the Blender application.
2. Open the .blend File: Navigate to 'File' > 'Open' and select the .blend file you exported from Meshy AI.
3. Add Modifiers:
   • Click on the wrench icon in the lower right-HAND side to access the Modifiers tab.
   • Add a 'Subdivision Surface' modifier to smooth the model.
   • Add a 'Displace' modifier to bring out finer details.
4. Adjust Settings:
   • Click ‘New’ under the Displace modifier, then scroll down and select ‘Image_0’ as your texture
   • Experiment with the strength settings in the Displace modifier to bring out the facial features, the higher the number, the thinner the features become, test this and play with the settings, between 0.01 - 0.25. Remember, that you can increase or decrease subdivision to achieve additional detail and smoothing .
5. Adjust the levels Viewport in subdivision: Remember that you will need good computer hardware when working in blender, if you set too much subdivision your computer will overload and potentially crash, so save often! Use you're mouse wheel to scroll into the model and check for feature detail.

By carefully adjusting these settings, you can achieve a much more refined and detailed 3D model suitable for printing.

Exporting the Optimized Model

After refining the model in Blender, the next step is to export it in a format suitable for 3D printing. This typically involves exporting the model as an STL file, ensuring that all the enhancements are preserved. Go to 'File' > 'Export' > 'STL (.stl)' and select a destination folder for your file. Give the file a name and then click 'Export STL'

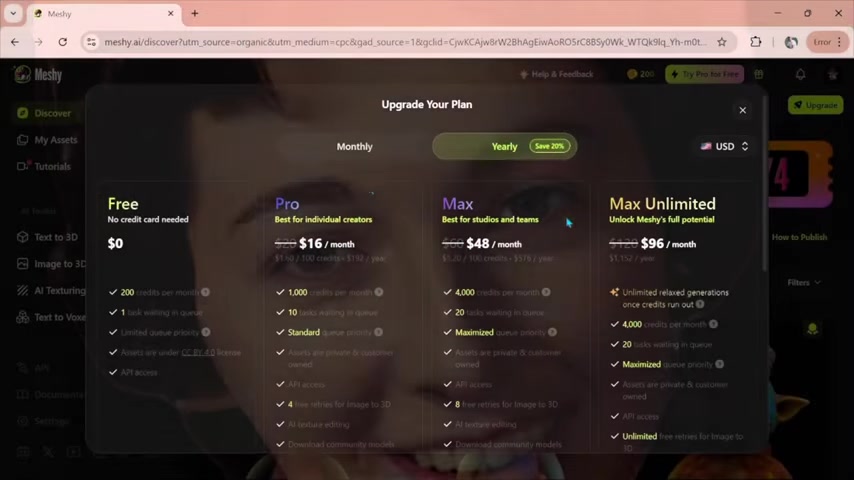

Understanding Subscription Plans

Meshy AI offers a range of subscription plans catering to diverse user needs, from individual creators to studios. Each plan provides a specific allocation of credits, queue priority, and additional features.

Users can choose a plan that best fits their usage and budget, with options to upgrade as their needs evolve.
