Building a Custom Ute Canopy: A Comprehensive Guide

Updated on Oct 02,2025

Table of Contents

Dreaming of the perfect setup for your ute, tailored precisely to your needs? Forget settling for off-the-shelf options. In this blog, we dive into the exciting world of custom ute canopies. We'll explore the step-by-step process of designing and building your own, covering everything from initial design to the final fit. Discover how to create a rugged, personalized ute canopy that fits your needs and budget.

Key Points

Designing a ute canopy from scratch allows for complete customization.

Understanding the processes of cutting, folding, and welding is essential.

Selecting appropriate materials ensures durability and longevity.

Attention to detail in design contributes to overall functionality.

Proper installation is key for a secure and reliable canopy.

Designing Your Custom Ute Canopy

Finding Inspiration and Defining Requirements

Before diving into the build, take time to explore existing canopy designs and determine what works best for your ute and lifestyle. Consider:

  • Storage Needs: How much storage space do you require? What types of gear will you be carrying?
  • Accessibility: How will you access the stored items? Side doors, rear doors, or a combination?
  • Work Surface: Do you need a built-in work surface or table?
  • 12V Power: Will you require 12V power for fridges, lighting, or other accessories?
  • Overall Design and Aesthetic: What style and finish will best complement your ute's look?

By carefully considering these points, you can establish a clear vision for your custom ute canopy. Many designs, and kits are available on the market to draw inspiration from.

Having access to the proper machinery is needed to successfully complete this build. For example, press brakes and CNC plasma tables are helpful tools to construct what you need

. Sourcing the equipment at the proper places can help to complete this build.

Creating a CAD Design: Bringing Your Vision to Life

Once you have a solid plan, it's time to create a Computer-Aided Design (CAD) model of your ute canopy

. This design will serve as your blueprint throughout the build. Some tips for CAD design include:

  • Accuracy is key. Ensure all dimensions are accurate and reflect the actual measurements of your ute.
  • Consider tolerances. Account for material thickness and welding tolerances.
  • Use appropriate CAD software. Options include SolidWorks. Don't be afraid to seek guidance from those with prior knowledge in similar situations as Justin has built multiple canopies over time . This step ensures that your canopy will fit your needs.

Material Selection: Choosing the Right Components

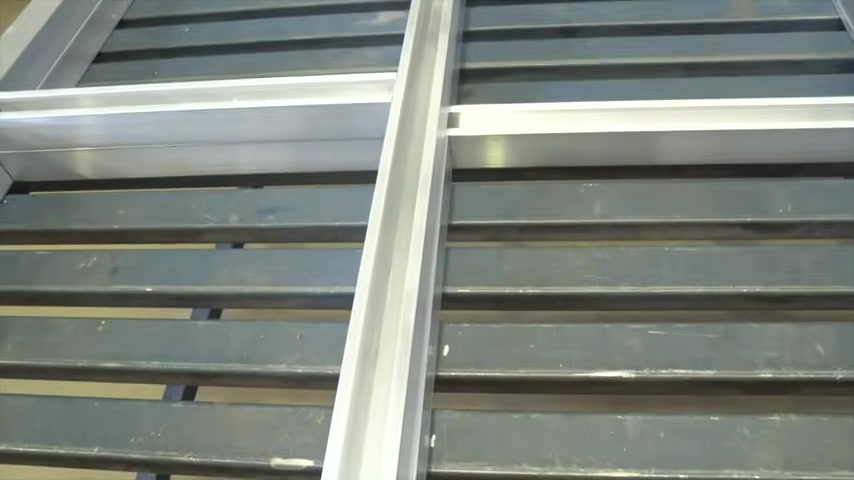

Aluminum Canopy, Unistrut Frame

Choosing the right material to construct your canopy is an important step in this build. Choosing aluminum, in comparison to steel, provides a cleaner and more forgiving option

. As well as unistrut as a frame for the build.

Benefits to using aluminum:

  • Lighter to move
  • Provides a cleaner end result
  • Springs Nuts can be configured in it to create different storage solutions or accessories
  • Solid lightweight frame for supporting wires

Step-by-Step Guide: Building Your Canopy

Folding and Shaping the Panels

Many canopy designs involve folding the aluminum sheets to create structural support and aesthetically pleasing shapes. A press brake is used for this process.

  • Set up the press brake with the appropriate dies for your desired folds.

  • Carefully position the cut panels on the press brake.

  • Perform the required folds, ensuring consistent angles and dimensions. Be sure to consult your design, and create the folds according to it.

  • Repeat this process for all panels requiring folding.

Welding the Frame and Panels

Welding is essential for joining the frame components and attaching the panels to create a robust canopy structure. TIG welding is commonly used for aluminum canopies

.

  • Clean all surfaces to be welded thoroughly.
  • Tack weld the frame components together, ensuring proper alignment and squareness.
  • Perform full weld passes, aiming for consistent and strong welds. You want a good amount of strength for those bumpy rides .
  • Weld the panels onto the frame, paying attention to weld quality and avoiding distortion.
  • Grind down any rough points to smooth it over.

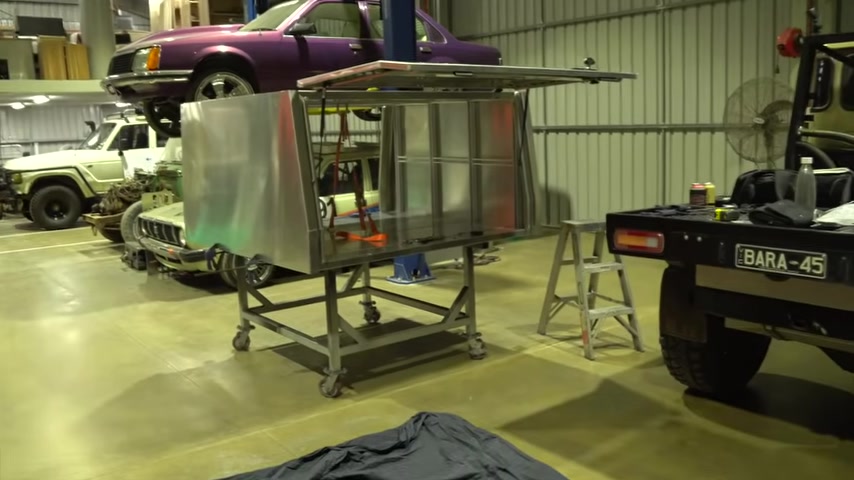

Assembling and Fitting

The final stage involves assembling all the individual pieces and testing the fit on your ute.

  • Attach the gas struts to the top of the canopy .
  • Mount the hinges to the canopy lid.
  • Attach the Pinchweld to the doors to secure them .
  • Carefully lift the canopy onto your ute's tray, ensuring it aligns correctly.
  • Secure the canopy to the tray using appropriate fasteners.
  • Test all doors, latches, and other features for proper functionality.
  • Sand the Aluminum with 240 grit sandpaper. This step is preparing to paint the finished product.

Pricing Considerations

Factors Affecting the Overall Cost

The cost of building a custom ute canopy varies depending on factors such as:

  • Material Costs: Aluminum
  • Labor Costs: Can range based on experience, if seeking outside sources.
  • Machinery access fees.

Building Your Own Ute Canopy: Pros and Cons

👍 Pros

Complete design control.

Potentially lower cost.

Customized to specific needs.

DIY experience.

Ability to add storage, or other desired components.

👎 Cons

Requires metalworking skills.

Requires specialized tools.

More time and effort consuming.

Can be prone to mistakes, if inexperienced

May be hard to adhere to specific design requirements.

Frequently Asked Questions

Is building a custom ute canopy a difficult process?
Building a ute canopy is not a simple process and does require skill. However, it can be easily mastered with proper equipment, knowledge, and patience.
Why should I build a customized canopy?
Building a custom canopy allows for a personalized look, and complete freedom over the design. You can also avoid settling for off-the-shelf products.

Related Questions

What are some considerations when painting an aluminum canopy?
Ensuring the paint adheres to the aluminum of your canopy, sanding with 240 grit sandpaper is needed . As the aluminum will shine without sanding, ensuring that it can bind is very important. Also remember to wear eye protection when sanding !
