NVIDIA Hopper Architecture and Export Controls: An In-Depth Analysis

In the rapidly evolving world of Artificial Intelligence (AI) and high-performance computing, NVIDIA's Hopper GPU architecture stands out as a significant advancement. This article delves into the technical specifications of the Hopper architecture, particularly focusing on the differences between the H100, H800, and H20 GPUs. We'll also examine the impact of US export controls on the availability and utilization of these powerful processors, especially concerning AI development in China. Furthermore, we'll discuss the broader implications for the future of AI and computational power in a global context.

Understanding the Hopper Architecture

The NVIDIA Hopper architecture, named after computer scientist Grace Hopper, represents a significant leap forward in GPU technology

. Designed to accelerate AI workloads, data analytics, and high-performance computing, Hopper introduces several key innovations. One of the most notable is its enhanced Tensor Cores, which deliver substantial performance improvements for deep learning tasks. The Hopper architecture also features a new Transformer Engine, which optimizes performance for transformer models, the workhorse of modern natural language processing (NLP) and computer vision. Further, Hopper's Confidential Computing capabilities are designed to address the growing demands for high security, especially in AI applications that involve sensitive data. Key improvements over Ampere (A100) are increased computational throughput and better memory bandwidth.

H100 vs. H800: Dissecting the Differences

When discussing the NVIDIA Hopper architecture, it's crucial to understand the nuances between different GPU models, particularly the H100 and H800

. While both are based on the Hopper architecture, they differ significantly in their specifications due to US export controls. The H100 was originally designed to offer high performance across both computational power (FLOPs) and interconnect bandwidth. However, due to export restrictions aimed at limiting China's access to advanced computing technology, the H800 was created as a modified version. The H800 primarily differs from the H100 in its reduced chip-to-chip interconnect bandwidth. This reduction makes the H800 compliant with export regulations, allowing NVIDIA to sell it to Chinese customers. Despite the lower interconnect bandwidth, the H800 maintains similar computational performance to the H100 for certain workloads. This is crucial for tasks like AI training and inference, where raw computational power is essential. However, applications that rely heavily on inter-GPU communication may see a performance bottleneck due to the reduced bandwidth. In short, the H100 offers the highest level of performance, but the H800 provides a viable alternative within the confines of export controls.

The H20: Navigating Export Restrictions with Innovation

The H20 GPU represents NVIDIA's latest attempt to navigate the complex landscape of US export controls while providing competitive AI processing power to the Chinese market

. After the initial export restrictions based on both interconnect bandwidth and FLOPs, the US government revised its regulations to focus solely on floating-point operations. This change led to the development of the H20, a GPU designed with cutbacks only on FLOPs but retaining the same interconnect bandwidth as previous generations. Interestingly, the H20 features improved memory bandwidth and larger memory capacity compared to the H100, making it potentially superior for memory-intensive tasks. The H20 highlights the ongoing cat-and-mouse Game between technology companies seeking to maximize market access and governments trying to limit the diffusion of sensitive technology. This constant pressure fosters innovation as companies are forced to find creative ways to optimize performance within tight regulatory constraints. The introduction of the H20 demonstrates NVIDIA's commitment to providing solutions for the Chinese market while adhering to the latest US export control measures.

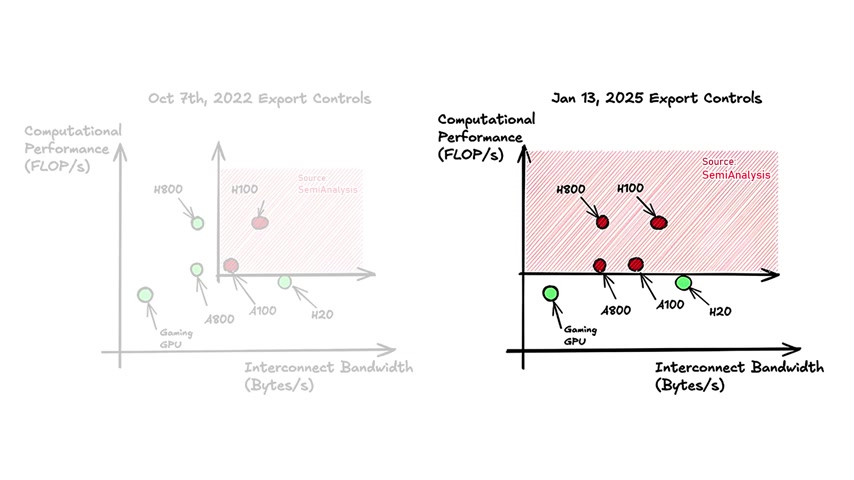

Understanding US Export Controls

US export controls are a set of regulations designed to restrict the export of certain technologies and goods to specific countries

. These controls are often put in place for national security reasons, aiming to prevent access to technology that could be used for military or strategic purposes. In the context of AI and GPUs, export controls target advanced processors that can accelerate AI training and inference. The restrictions are intended to slow down the progress of AI development in countries like China, which the US considers a strategic competitor. The specific metrics used to determine export eligibility have evolved over time. Initially, the US government limited exports based on a combination of interconnect bandwidth and FLOPs. However, these regulations were later revised to focus solely on FLOPs, allowing companies to modify their products to comply with the new rules. This has led to the creation of GPUs like the H800 and H20, which are specifically designed to meet US export requirements while still offering competitive performance.

DeepSeek's Strategy: Maximizing Performance Under Constraints

Faced with export controls that limit access to the most advanced GPUs, Chinese AI companies like deepseek have had to develop innovative strategies to maximize the performance of available hardware

. DeepSeek, an AI company that has managed to come close to the performance of US frontier AI models at a lower cost. One approach has been to focus on optimizing algorithms and software to make the most efficient use of existing GPUs. This involves techniques like model parallelism, data parallelism, and mixed-precision training, which can improve performance without requiring more powerful hardware. Another strategy involves cleverly leveraging GPUs that comply with export regulations, such as the NVIDIA H800 and H20. DeepSeek is now recognized to have a cluster of H800 GPUs to create DeepSeek V3. Companies can also invest in developing their own AI chips, customized to meet specific needs and optimized for particular workloads. While this requires significant resources, it allows companies to bypass export controls and gain greater control over their hardware. DeepSeek’s success demonstrates the resilience and adaptability of the Chinese AI ecosystem in the face of external challenges.

The Debate: Export Controls and the Future of AI

The use of export controls to restrict access to AI technology has sparked a heated debate within the AI community

. Proponents of export controls argue that they are necessary to protect national security and maintain a competitive advantage in AI. They believe that limiting access to advanced GPUs can slow down the development of AI in countries that may pose a threat to US interests. Dario Amodei argues that if AI becomes super powerful, the side with the most advanced AI systems, and associated hardware will have a significant advantage. Critics, on the other HAND, argue that export controls stifle innovation and hinder the progress of AI globally. They contend that restricting access to technology can incentivize other countries to develop their own solutions, potentially leading to a fragmented and less collaborative AI ecosystem. Furthermore, some argue that export controls may have unintended consequences, such as driving companies to develop less efficient or less secure AI systems. The long-term impact of export controls on AI development remains uncertain, but it's clear that these regulations will continue to Shape the landscape of AI research and innovation in the years to come. The primary reason for these concerns is rooted in geopolitical advantage. By limiting access to critical hardware, the US aims to maintain a competitive edge in AI capabilities. But there's a strong counterargument that export controls ultimately hinder technological progress.

Optimizing AI Workloads on Hopper Architecture

To effectively leverage the NVIDIA Hopper architecture for AI development, several optimization strategies can be employed:

• Leverage Tensor Cores: Take advantage of the enhanced Tensor Cores for accelerating deep learning tasks, particularly matrix multiplication.
• Utilize the Transformer Engine: Optimize performance for transformer models using the dedicated Transformer Engine.
• Explore Mixed-Precision Training: Experiment with mixed-precision training to reduce memory footprint and increase computational throughput.
• Implement Model and Data Parallelism: Distribute workloads across multiple GPUs to maximize utilization and Scale training.
• Employ NVIDIA's Software Tools: Utilize libraries like CUDA and cuDNN to optimize code for the Hopper architecture.
• Profile Performance: Use profiling tools to identify performance bottlenecks and optimize code accordingly.

Adapting to Export Control Restrictions

For developers working under export control restrictions, such as in China, the following strategies can help maximize performance with available hardware:

• Optimize Algorithms: Focus on developing algorithms that are computationally efficient and minimize the need for high interconnect bandwidth.
• Prioritize Software Optimization: Invest in software optimization techniques to squeeze the most performance out of existing GPUs.
• Explore Alternative Hardware: Consider using GPUs that comply with export regulations, such as the NVIDIA H800 and H20.
• Develop Custom AI Chips: If resources allow, explore the development of custom AI chips tailored to specific workloads.
• Collaborate with Global Partners: Partner with international organizations to access expertise and resources that may not be readily available locally.
