Creating an Internet-Enabled Cheating Device: TI-84 Mod

Updated on Jul 24,2025

Table of Contents

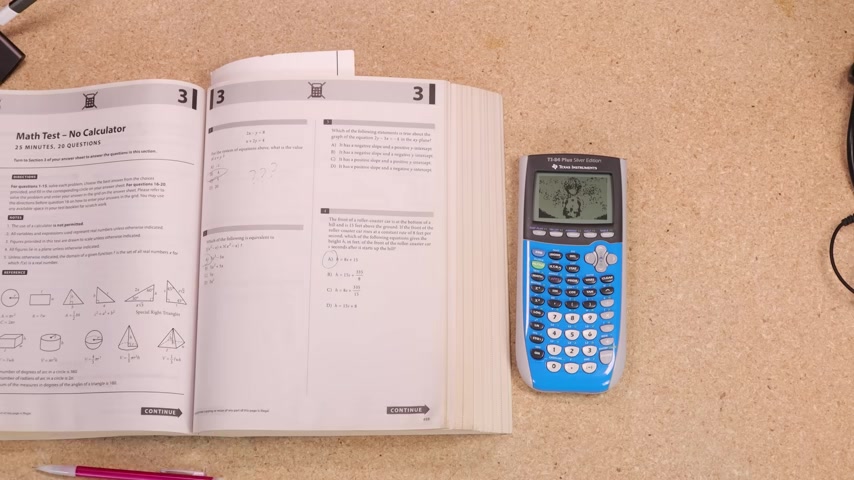

In today's tech-driven world, even the most traditional tools are getting a modern makeover. One such example is the seemingly innocuous TI-84 calculator, a staple in classrooms across the globe. But what if this simple device could be transformed into a powerful cheating tool? This project dives into the world of hardware modifications and software engineering to create an internet-enabled TI-84 calculator, capable of bypassing anti-cheating mechanisms and providing access to a wealth of information during exams. Let’s explore the ethically dubious yet technically fascinating creation of the ultimate cheating device.

Key Points

The project aims to modify a TI-84 calculator to access the internet.

It involves bypassing anti-cheating mechanisms.

The modification uses a 2.5mm jack for data transfer.

A WiFi-enabled microcontroller is integrated into the calculator.

Custom software is developed to facilitate internet connectivity.

Understanding the Project Goals and Components

The Ambitions: Cheating, Calculator Bans, and Calculus Classes

The project sets out with some clear goals.

First, to get the TI-84 calculator banned from the acceptable calculators list on every standardized test. Second, to give someone at Texas Instruments a heart attack. And finally, to help students pass their calculus classes. All of these goals would be achieved by creating a custom hardware mod that connects the TI-84 to the internet, allowing it to bypass standard anti-cheating mechanisms.

It starts with examining a little-known port on the calculator. A port you would usually think of as a headphone jack . However, it turns out it’s not a headphone jack. Its intended purpose, according to the narrator, is to transfer educational programs or other data between calculators and PCs, but the homebrew community reverse-engineered the protocol and wrote software to connect a microcontroller to the calculator through the port.

The project's ultimate aim is to create a cheap, undetectable, and ethically dubious internet-enabled cheating device. By exploiting the calculator's hardware and software, the project seeks to demonstrate how a seemingly harmless device can be transformed into a tool for academic dishonesty. Let's delve into the specific components and software needed to bring this project to life.

Selecting the Right Microcontroller: Seed Studio ESP32 C3

The most obvious choice for this project is the Seed Studio ESP32 C3.

The Seed Studio ESP32 C3 is a microcontroller that offers small size and WiFi connectivity which makes it ideal for integrating with the TI-84 calculator . It's a 3.3V system, while the TI-84’s link port uses 5V. A level shifter circuit converts digital signals from one voltage to another, allowing the microcontroller to communicate with the calculator safely .

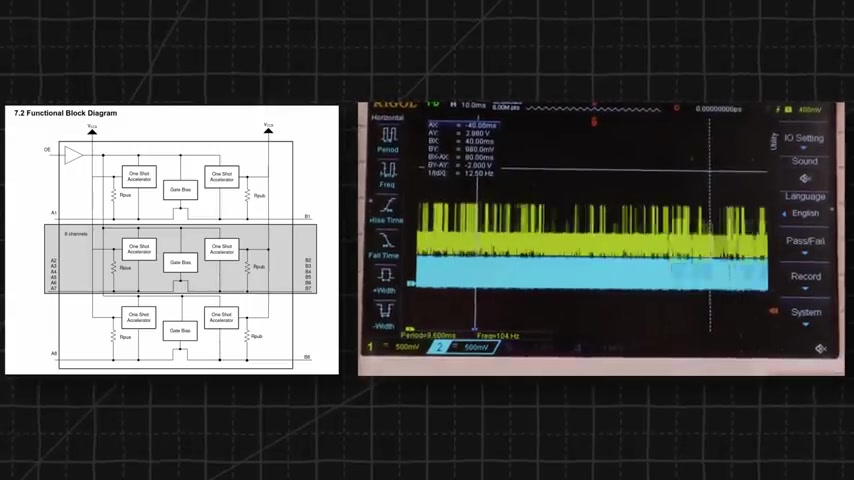

A level shifter converts digital signals from one voltage to another. The initial choice of level converter proves inadequate, highlighting the importance of selecting the right component for the project. After doing some research with help from online engineering god, Keith Sachs, the narrator learned there was a much simpler mosfet + couple resistors design . This dumass brick design is perfect for low speed, less than ideal situations like the 9.6kbit protocol of the link port. The point is, selecting a suitable microcontroller and addressing voltage compatibility issues are crucial for the project's success.

Overcoming the Hurdles of Implementation

Challenges and Setbacks in Hardware Modification

The initial phases of the project were not without their challenges. The narrator encountered problems with the level shifter, discovering that the chosen component was not suitable for the project's requirements. After that discovery, the project required another purchase on amazon, thus wasting even more time on the project. This setback underscores the importance of thorough research and careful selection of components in hardware modification projects

. The right level shifter is critical for ensuring reliable communication between the microcontroller and the calculator. The project's progress hinged on overcoming this obstacle.

The narrator is also apparently using the stiffest wire known to man, which also presented a hurdle. Finally, the poor soldering connections were so bad that Keith Sachs called them "Cursed". In the end, though, the hardware was a success.

Software Setup and Communication Protocols

For this project, the microcontroller is set up to impersonate another TI-84, so that it isn’t obvious what you are doing when the person running the test decides to look

. The applets use built-in send and get commands to send or receive variables from the microcontroller. He includes a command structure listing commands like connect to internet, get list of images, or send chat message each with its unique ID .

As part of the software setup, the microcontroller is programmed to act as another TI-84, allowing the custom applets to use built-in send and get commands. To begin one of those commands, an applet simply needs to set the C variable to the appropiate ID and send it, followed by any arguments to the command . Some commands make a request to a central server running on the cloud or a home computer exposed to the internet using ngrok.

Unlocking the Internet-Enabled Calculator: A Step-by-Step Guide

Accessing the Applets and Bypassing Security

  1. Bypassing initial security. Since a pre-installed launcher would be easily detectable, to get around this, you first need to set the P variable to a password to a password the you had pre-set in the firmware, and then send it manually .

  2. Accessing the internet applets. With the micro controller now unlocked, you set C to the command ID for "download launcher" and then send it manually again .

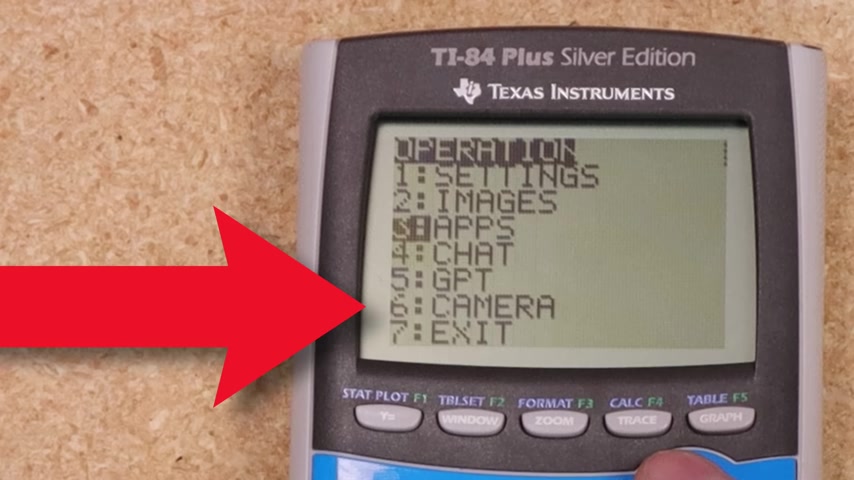

  3. Accessing the Apps. A menu pops up with a list of apps to use for test taking .

Cost Analysis: Building a Budget-Friendly Cheating Device

Components Needed and Estimated Costs

Creating an internet-enabled TI-84 calculator requires a combination of hardware components and software development. Below, you'll find a breakdown of the key components and their estimated costs:

Component Estimated Cost Notes
Seed Studio ESP32 C3 $10-$20 The microcontroller that adds Wifi capabilities to the Calculator
Level Shifter $5-$10 A simple bricked level shifting circuit, a mosfet and a couple of resistors, perfect for this cheap device
Connectors and wires $5-$10 Required for connecting the microcontroller to the calculator's internal circuitry.
Custom PCB fabrication $10-$30 (Optional) For a more professional and reliable setup.
Total Estimated Cost $30-$70 This cost can vary based on component sourcing and PCB fabrication options.

In addition to the hardware costs, you will also need to factor in the time and effort required for software development. While the software is open-source, it may require modifications or customization to suit your specific needs. The total cost to produce is around $70 dollars, depending on the choices made.

Analyzing the Internet-Enabled TI-84: A Balanced Perspective

👍 Pros

Enhanced Connectivity: Provides access to a wealth of online resources and information.

Customization: Allows for the installation of custom software and applications.

Problem-Solving Assistance: Enables the use of AI-powered tools and chat functionalities.

👎 Cons

Ethical Concerns: Raises questions about academic honesty and fair play.

Detection Risk: Increases the risk of detection by teachers or proctors.

Legal Consequences: May result in legal penalties or damage to reputation.

Transforming Test-Taking: Use Cases

Revolutionizing Cheating in Exam Settings

With the internet-enabled TI-84 calculator, the possibilities for academic dishonesty are endless. Imagine being able to access a vast database of information, communicate with peers in real-time, and even generate solutions to complex problems with the help of AI-powered tools. The calculator is loaded with chat and GPT capabilities to that end . The Chat and GPT capabilities work well with smaller questions, so they could assist users. These capabilities could completely transform the way exams are approached, giving students an unfair advantage over their peers.

Navigating Test Mode and Anti-Cheating Measures

The developer mentions that he was able to get around test mode and the memory clear by having these features built into the system. By transferring cheat sheets to the computer, then transfered to the calculator via the server, they are able to persist if the calculator memory is wiped by a teacher. Further, there is an unlock capability to break it out of test mode

.

Frequently Asked Questions

Is it ethical to modify a calculator for cheating purposes?
Modifying a calculator for cheating purposes raises serious ethical concerns. Engaging in academic dishonesty can have severe consequences, including failing grades, suspension, or expulsion. Furthermore, it undermines the value of education and creates an unfair playing field for other students. As such, it is strongly discouraged to engage in such activities. The only reason for doing a project like this is for educational purposes only.
Can this modification be detected by teachers or proctors?
While the modification is designed to be discreet, there is always a risk of detection. Teachers and proctors are becoming increasingly aware of the various methods students use to cheat, and they may employ advanced techniques to identify modified calculators or other unauthorized devices. Furthermore, if you are caught using a modified calculator during an exam, you could face disciplinary action and damage your academic reputation.
Are there any legal consequences for modifying a calculator for cheating?
In some jurisdictions, modifying a calculator for cheating purposes may be considered a form of academic fraud, which could have legal consequences. While the specific laws and penalties may vary, engaging in such activities could result in fines, legal action, or damage to your reputation. As such, it is essential to be aware of the potential legal ramifications before considering this project.

Related Questions

What are the potential security vulnerabilities in calculators used for high-stakes testing, and how can these vulnerabilities be exploited?
Calculators used in high-stakes testing, such as the SAT or ACT, often have security vulnerabilities that can be exploited to gain an unfair advantage. These vulnerabilities can stem from various sources, including the calculator's hardware, software, or communication protocols. Here are some potential security vulnerabilities and how they can be exploited: Firmware Modifications: The calculator's firmware, which controls its basic functions, may be vulnerable to modifications. This could allow students to install custom software or applications that provide unauthorized assistance during exams. Such modifications can be difficult to detect, as they alter the calculator's internal programming. Data Storage Exploits: Calculators often have limited data storage capabilities, but these can be exploited to store unauthorized information, such as cheat sheets or formulas. Students may attempt to conceal this information by using hidden folders or encrypted files. Communication Protocol Hijacking: The communication protocols used by calculators to transfer data between devices or computers may be vulnerable to hijacking. This could allow students to wirelessly transmit or receive information during exams, bypassing proctoring efforts. Hardware Tampering: Physical modifications to the calculator's hardware, such as adding external storage or communication devices, can create security vulnerabilities. These modifications may be difficult to detect, as they can be concealed within the calculator's casing. To mitigate these security vulnerabilities, testing organizations and calculator manufacturers can implement various measures, including: Firmware Security Enhancements: Regularly updating the calculator's firmware with security patches and tamper-detection mechanisms can help prevent unauthorized modifications. Data Storage Restrictions: Limiting the amount of data that can be stored on the calculator or implementing encryption protocols can reduce the risk of cheat sheets or other unauthorized information being stored. Communication Protocol Security: Using secure communication protocols and implementing authentication mechanisms can prevent unauthorized data transmission during exams. Hardware Tamper Detection: Incorporating hardware tamper-detection mechanisms, such as physical seals or sensors, can help identify physical modifications to the calculator.
