Image Segmentation: Solving with Graph Multi-Cut Problems

Image segmentation is a cornerstone of computer vision, enabling us to partition images into meaningful segments. This blog post delves into how graph theory and combinatorial optimization, specifically graph multi-cut problems, offer a powerful approach to image segmentation. We will focus on segmenting electron microscopy images of neural tissue, demonstrating the practical applications of these concepts in understanding complex biological structures. Discover how this technique assists biologists and physicians in gaining deeper insights into objects such as the human brain.

The Importance of Image Segmentation

Image segmentation is the process of partitioning a digital image into multiple segments (sets of pixels). More precisely, Image Segmentation is the process of assigning a label to every pixel in an image such that pixels with the same label share certain visual characteristics.

The result of image segmentation is a set of segments that collectively cover the entire image. Each of the pixels in a region are similar with respect to some characteristic or computed property, such as color, intensity, or texture. It is a vital task in numerous applications, such as autonomous driving, medical imaging, and object recognition. In autonomous driving, image segmentation allows vehicles to identify and classify different parts of the road scene, such as road surfaces, cars, pedestrians, and traffic signs. In medical imaging, it enables the analysis of structures such as tumors from imaging data which may come from CT scans, MRI scans and X-rays. Accurately segmenting images is crucial for effective analysis and decision-making in these and many other fields.

The goal of image segmentation is to simplify and/or change the representation of an image into something that is more Meaningful and easier to analyze.

Image segmentation is used to locate objects and boundaries (lines, curves, etc.) in images. More precisely, image segmentation is the process of assigning a label to every pixel in an image, such that pixels with the same label share certain characteristics. The result of image segmentation is a set of segments that collectively cover the entire image, or a set of contours extracted from the image (see edge detection). Each of the pixels in a region are similar with respect to some characteristic or computed property, such as color, intensity, or texture. Adjacent regions are significantly different with respect to the same characteristic(s). When applied to a stack of images, typical in MRI/CT scanning, the resulting contours after image segmentation can be used to create 3D reconstructions with the help of interpolation algorithms like marching cubes.

Key Concepts for Image Segmentation:

• Pixels and Regions: Understanding the fundamental units of an image, pixels, and how they form larger, meaningful regions.
• Image Properties: Identifying and utilizing image characteristics like color, intensity, and texture to distinguish between different segments.
• Applications: Recognizing the diverse real-world applications of image segmentation, from self-driving cars to medical diagnoses.

How Graph Theory Comes into Play

Graph theory provides a powerful framework for tackling image segmentation problems. At its core, graph theory deals with the study of graphs, which are mathematical structures used to model pairwise relations between objects. A graph consists of vertices (nodes) and edges that connect these vertices.

In image segmentation, we can represent an image as a graph where each pixel corresponds to a vertex, and edges connect neighboring pixels. The weight of each edge represents the similarity between the connected pixels; the more similar two pixels are (in terms of intensity, color, or texture) the higher the edge weight. This transforms the image segmentation task into a graph partitioning problem.

Building the Image Graph:

1. Pixel as Vertices: Each pixel in the image becomes a vertex in the graph.
2. Connectivity: Neighboring pixels are connected by edges (4-connectivity or 8-connectivity are common).
3. Edge Weights: Edges are assigned weights based on the similarity between connected pixels. High similarity results in high weight.

Graph Multi-Cut Problem then are used to solve the image segmentation problem.

What is Graph Multi-Cut Problem

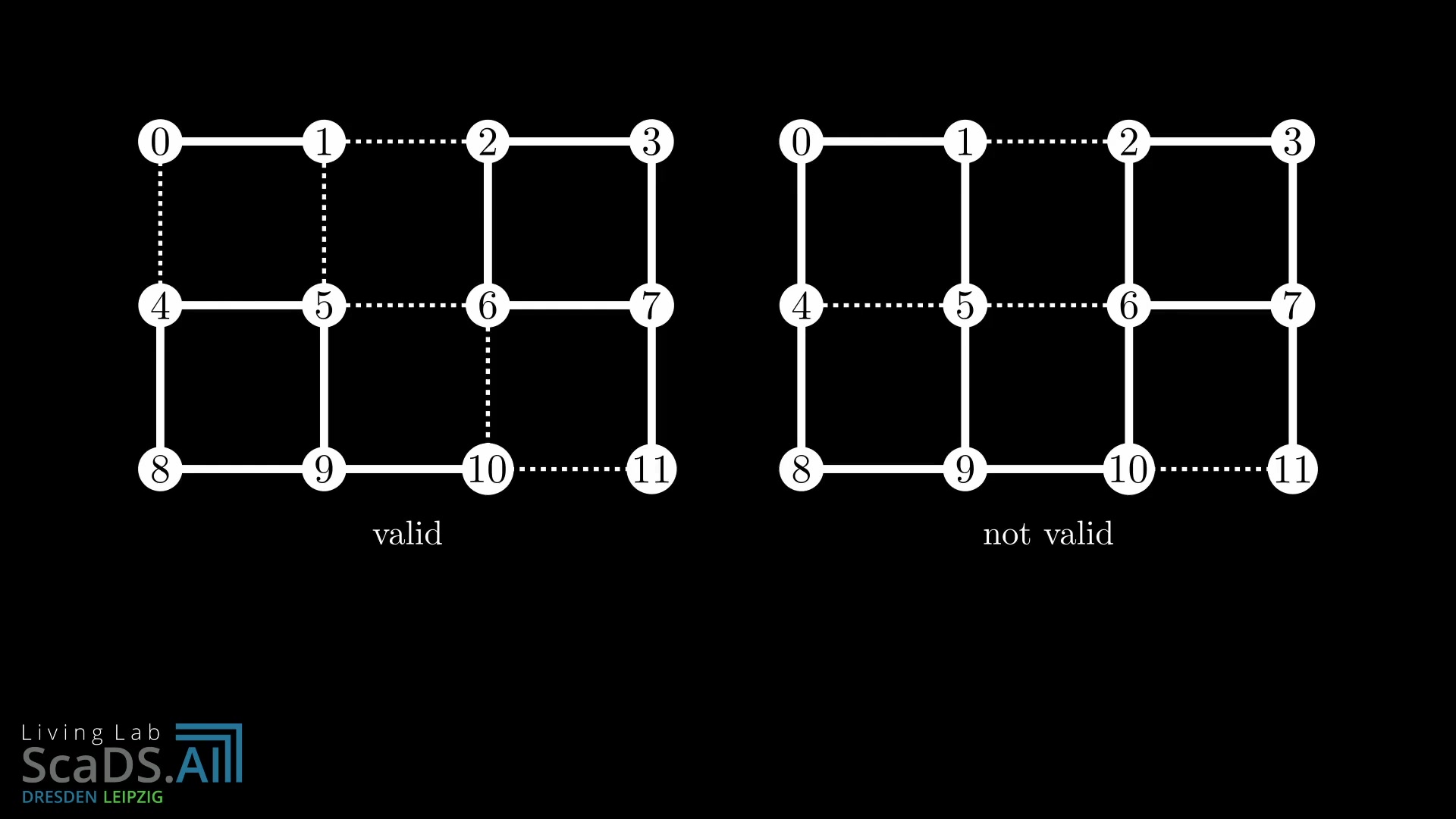

In graph theory, a multi-cut is a set of edges whose removal disconnects a graph into multiple connected components. The graph multi-cut problem aims to find a multi-cut that minimizes the total weight of the removed edges while ensuring that specific pairs of vertices (terminal pairs) are separated into different components. Think of it as strategically cutting an image graph to isolate different objects or regions.

Mathematical Definition:

Given a graph G = (V, E) with edge weights and a set of terminal pairs, the multi-cut problem involves finding a subset of edges that minimizes the sum of their weights, such that each terminal pair is disconnected in the resulting graph.

Connection to Image Segmentation:

By formulating image segmentation as a graph multi-cut problem, we aim to find the optimal way to "cut" the image graph to isolate different objects based on their dissimilarities, while keeping similar pixels within the same segment.

Formulating the Multi-Cut Problem for Neural Tissue Segmentation

To segment electron microscopy images of neural tissue using a multi-cut approach, we need to define:

• Vertices: Each pixel or small group of pixels in the electron microscopy image becomes a vertex in the graph.

• Edges: Connect neighboring vertices.



• Edge Weights: This is where deep learning steps in. A pre-trained deep neural network predicts the likelihood of a boundary (membrane) between neighboring pixels. This prediction is used to calculate the weights of the edges. Higher probability of a membrane means a lower (more negative) weight, indicating that the edge is a good candidate for cutting.

• Terminal Pairs: Not always explicitly defined. Can use heuristics based on neural net output.

This process transforms the image into a format suitable for processing.

Solving Multi-Cut Problems: Algorithms

Solving the multi-cut problem is NP-hard, meaning that finding the optimal solution can be computationally expensive for large graphs. Therefore, various algorithms are employed to find near-optimal solutions within a reasonable time.

• Greedy Algorithms: A straightforward approach is to iteratively remove edges with the lowest weights (highest membrane likelihood) until the terminal pairs are disconnected. This is fast but may not always produce the best results.



• Integer Linear Programming (ILP): The multi-cut problem can be formulated as an ILP problem, which can then be solved using ILP solvers. This method guarantees an optimal solution but is computationally intensive.

• Specialized Algorithms: Advanced algorithms, often based on message-passing or other approximation techniques, are designed to handle large graphs efficiently. One method named Mutex Watershed Algorithm, as seen in the YouTube video.

These all produce fast and meaningful results.

The Role of Deep Neural Networks

Deep neural networks significantly enhance image segmentation by providing accurate boundary predictions. Instead of relying on simple image features, deep learning models can learn complex Patterns and contextual information from the data. For electron microscopy images, a convolutional neural network (CNN) can be trained to identify the presence of membranes between cells. This is done by providing training data containing image patches and corresponding labels indicating whether a membrane exists at the center pixel.

The trained CNN can then predict the likelihood of a membrane at each pixel in a new image.

• Feature Extraction: Deep learning models learn Relevant features from the image data.
• Boundary Prediction: The neural network predicts the probability of a membrane between pixels.
• Edge Weight Calculation: These probabilities are converted into edge weights for the graph multi-cut problem.

Step-by-Step Implementation

1. Data Preparation: Preprocess the image data, which is explained at the beginning of the video.
2. Graph Construction: Create a graph by the explanation in previous sections. Every pixel gets its own vector, edges connect all adjacent vectors.
3. Deep Learning Prediction: Deep learning model predict the edges between items in the graph to look for a membrane for a clearer divide and a better solution, the probabilities are used for that purpose.
4. Multi-Cut Solving: Solve multi-cut problem to remove edges to achieve the ultimate solution for graph partitioning and image segmentation.
5. Solution Visualization: The best image is produced and can be analyzed and worked on.
