Advanced Multi-Agent Routing: A Comprehensive Guide

In the rapidly evolving landscape of AI, the orchestration of multiple agents to perform complex tasks is becoming increasingly vital. This blog delves into advanced multi-agent routing techniques using LangGraph, a powerful framework for building robust and scalable AI systems. We will explore key concepts like mission control nodes, router nodes, and multi-test agent nodes, providing you with a comprehensive understanding of how to design and implement sophisticated agentic workflows.

The Evolution of Agentic Workflows

Modern AI applications demand more than just single-agent solutions. Complex tasks often require the collaboration of multiple specialized agents. Advanced multi-agent routing orchestration addresses this need by providing a framework for directing traffic and coordinating tasks among different agents. This blog post is part one of a series exploring these advanced techniques. Traditional methods of connecting Prompt nodes to react agents via conditional edges often prove inadequate at scale, leading to architectural fragility.

This is because human language is nuanced and doesn't always cleanly map to predefined categories like 'weather,' 'finance,' or 'email.' The ambiguity in user requests can make simple keyword-based routing unreliable.

Therefore, there's a shift towards more intelligent and robust routing architectures. We're moving beyond basic conditional logic and embracing systems that can understand the intent and context of user requests with greater accuracy. This involves using Large Language Models (LLMs) to analyze user input, extract key information, and make informed decisions about how to route the request to the most appropriate agent. This approach allows for more flexible and adaptive workflows, capable of handling the complexities of real-world interactions.

Limitations of Traditional Routing Architectures

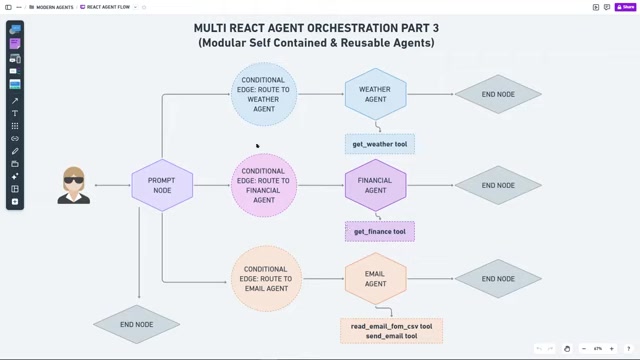

While previous series explored connecting prompt nodes to React agents via conditional edges, such architectures exhibit limitations at scale.

Human language's inherent ambiguity often renders simple keyword-based routing undependable. Reliance on specific keywords like 'weather,' 'finance,' or 'email' within user messages leads to inaccurate routing when user intent is less explicit or phrased differently. The previous model which connected our prompt node to our react agents at the back end, via these conditional edges, that this conditional edges, we followed a system where we scanned the user message for specific words like weather, finance, email etc, and based on that, we directed our traffic to the right agent but at scale, this architecture is not very robust. Because human messages don't work that way all the time, which makes our conditional edges not very dependable.

The conditional edges that is, route to weather agent, route to financial agent and route to email agent. This rigid approach compromises the reliability and scalability of multi-agent systems, necessitating more sophisticated routing mechanisms.

Introducing the Advanced Routing Orchestration

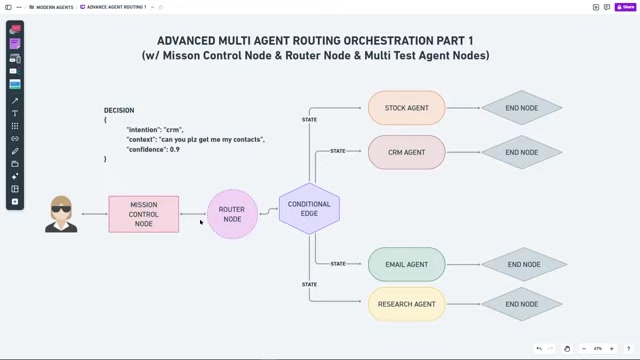

To overcome these limitations, a new routing architecture is introduced. This architecture uses a mission control node and a router node, along with multi-test agent nodes, to create a more intelligent and flexible system.

The goal is to make the entire system more robust and capable of handling the complexities of natural language input. The modern approach replaces the simple prompt node with a smarter mission control node. This node employs its LLM to analyze the user message, extract intent, context, and confidence levels. This replaces a scan for keywords with a deep understanding of meaning, the decision node object contains the intention, context and confidence level. This decision object is then passed to another intelligent router node, which is responsible for directing traffic to the appropriate agent based on the information provided in the object.

At the Router Node level: Analyzes the intention, context, and confidence generated by the Mission Control Node to determine the ideal agent. The Multi-Test Agent Nodes provides routing to multiple agents.

The Mission Control Node: A Smarter Prompt

The mission control node replaces the traditional prompt node. It uses an LLM to analyze the user's message, extract key information, and create a 'decision object'.

This object contains:

• Intention: A string representing the user's intent (e.g., 'crm', 'stock', 'email', 'research').

• Context: The original user message.

• Confidence: A number between 0 and 1 expressing the system's confidence in its understanding of the user's intention. The mission control node is responsible for analyzing user input and determining the correct intent. Rather than directly replying to the user, the mission control node creates a decision object which contains the following data items:

• Intent – a one of the labels

• Context – original user message

• Confidence – a confidence score between 0 and 1

The Router Node: Intelligent Traffic Direction

The router node receives the decision object from the mission control node. Its role is to analyze this object and direct traffic to the most appropriate agent.

The router analyzes the intention, context, and confidence level provided by the Mission Control Node, which is connected to the test agents using conditional edges. At this level, it will analyze this object, and create more structural output, and this will be connected to the rest of our agents using this conditional edge and based on that, we will be routing our traffic to the perfect agent, like a stock agent, CRM agent, email agent, or research agent. This process could involve:

• Applying additional logic and rules to refine the routing decision.
• Consulting external knowledge bases to gather additional information.
• Employing more sophisticated LLMs for deeper semantic analysis.

Multi-Test Agent Nodes: Diversified Task Execution

These nodes represent the various specialized agents within the system.

These could include:

• Stock Agent: For handling requests related to stock market data.
• CRM Agent: For managing customer relationship information.
• Email Agent: For sending and receiving emails.
• Research Agent: For conducting general research assistance. Each agent has specific tools and expertise, allowing them to effectively handle different types of tasks. The router node ensures that each request is directed to the agent best suited to fulfill it. If the request is outside the scope of the available agents, the mission control node can assign the designation unknown.

Prerequisites

Before implementing advanced multi-agent routing, ensure you have the following:

• Python 3.6+
• Langchain and LangGraph libraries installed. Use pip install -q langchain langgraph
• OpenAI API key or another LLM API key.
• Basic understanding of Langchain and LLMs.

Step 1: Define the State

Start by defining the state data structure using TypedDict. This structure holds the messages and ensures that each agent has annotated messages:

from typing import TypedDict, Annotated

class State(TypedDict):
    messages: Annotated[list, add_messages]

Step 2: Initialize the Graph Builder

Initialize the graph builder using StateGraph from LangGraph. This sets up the foundation for your multi-agent workflow:

from langgraph.graph import StateGraph

graph_builder = StateGraph(State)

Step 3: Develop the Mission Control Node

The mission control node is crucial for understanding user intent. Extract user input, leverage the LLM and prompt:

from langchain_core.messages import HumanMessage, SystemMessage

MISSION_CONTROL_PROMPT = """You are Mission Control, responsible for analyzing user input...

def mission_control(state: State):
    # Extract intent from user input using a structured prompt
    messages = [
        SystemMessage(content=MISSION_CONTROL_PROMPT),
        HumanMessage(content=state["messages"][-1].content)
    ]
    return {"messages": [llm.invoke(messages)]}

graph_builder.add_node(mission_control, mission_control)

Step 4: Adding Entry and Finish Points

To kickstart the system, the mission control will act as the entry point:

graph_builder.set_entry_point(mission_control)
graph_builder.set_finish_point(mission_control)

Step 5: Compile the Graph

Compile the multi-agent graph for operational readiness:

graph = graph_builder.compile()

Cost Factors in Multi-Agent Routing

Implementing advanced multi-agent routing involves various cost factors. These include:

• LLM API Usage: Costs are associated with the usage of LLM APIs for intent recognition and routing decisions.
• Agent Complexity: The complexity and computational requirements of individual agents contribute to the overall cost.
• Infrastructure Costs: Infrastructure costs, such as server resources and cloud services, are essential for running the multi-agent system.
• Development and Maintenance: Ongoing development and maintenance efforts contribute to the total cost.

Strategies for Cost Optimization

To optimize costs, you can consider:

• Selecting cost-effective LLMs.
• Optimizing agent designs for efficiency.
• Implementing caching mechanisms to reduce API calls.
• Monitoring and analyzing usage patterns to identify areas for cost reduction.

Intent Recognition and Context Understanding

The system can identify user intentions and understand the message context to route traffic effectively.

Intelligent Traffic Direction

A router node is capable of analyzing information and direct traffic to the most appropriate agent.

Multi-Agent Task Execution

Test agents are equipped to execute different tasks based on routing.

Structured Output and Communication

It facilitates structured data object generation, ensuring successful communication between components.

Customer Relationship Management (CRM) Systems

Multi-agent systems can automate Customer Service tasks. For instance, handling queries related to contacts with a CRM agent with high accuracy. Route complex user input to specialized agents based on intent to streamline processes.

Email Processing and Management

Analyzing, organizing, and sending emails more efficiently. Agents can be designated to process correspondence, improving speed and reliability.

General Research

When users require insights or data, research agents identify topics with their intention and gather pertinent information, providing a quick solution.
