Deepmedic for Liver Segmentation: A Comprehensive Guide

Accurate liver segmentation is crucial for various clinical applications, including surgical planning, disease diagnosis, and treatment monitoring. Deep learning, particularly convolutional neural networks (CNNs), has revolutionized medical image analysis. This article delves into Deepmedic, a specialized deep learning architecture designed for precise liver segmentation from computed tomography (CT) scans. We'll examine its unique structure, the datasets used for training, the metrics employed for evaluation, and the practical implications of its use in clinical settings. This guide provides a comprehensive overview of Deepmedic's role in advancing medical image analysis for liver-related applications.

An In-depth Look at the Three-Channel CNN

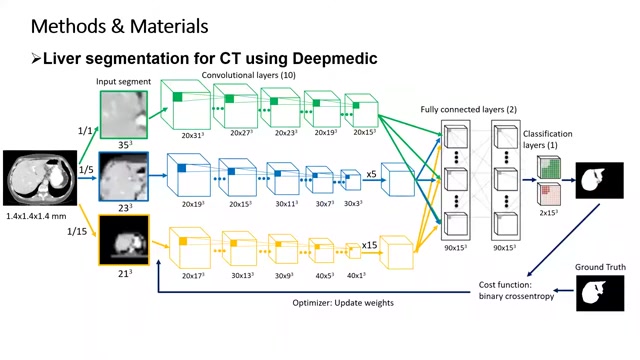

Deepmedic distinguishes itself by employing a three-channel convolutional neural network (CNN) architecture specifically tailored for liver segmentation in CT images. This multi-channel approach allows the network to capture information at varying resolutions, enabling a more comprehensive understanding of the liver's anatomy and its surrounding context.

The core idea is to combine the strengths of high-resolution and low-resolution pathways to achieve a balance between detailed feature extraction and contextual awareness.

• High-Resolution Channel: This channel processes the input image at its original resolution. It's designed to capture fine-grained details within the liver, such as subtle variations in tissue density or the presence of small lesions. This is crucial for accurate boundary delineation and identifying intricate structural features. The CNN architecture will extract high level features after running the patches sampled from the input.
• Downsampled Channels: To provide contextual information, the architecture includes two additional channels that process downsampled versions of the input image. These channels capture the broader anatomical context surrounding the liver, allowing the network to understand the liver's relationship to neighboring organs and structures. This contextual awareness helps to reduce false positives and improve the overall robustness of the segmentation. The input image is downsampled by factors of 1/5 and 1/15.

By fusing information from these three channels, Deepmedic can effectively leverage both local details and global context for precise liver segmentation. This design is instrumental in handling the complexities of liver anatomy and the variability present in CT images. The convolutional layers are used in 10 layers.

Fully Connected Layers Fully connected layers (2 layers) are utilized to combine features together. The high and lower resolution features are combined.

Classification Layers Classification layers (1 layer) are used to output a probability map. The output represents the probability of each voxel belonging to the liver.

Binary Cross Entropy Cost Function The similarity between the ground truth and probability map is combined using the binary cross entropy cost function.

Optimizer An optimizer is used to update the weights in the network so that the cost function can be minimized.

Input Segment and Patch Extraction

The process begins with an input segment, which represents a portion of the CT scan encompassing the liver region. To efficiently process this segment, Deepmedic extracts small patches, or sub-volumes, from the input image. These patches serve as the fundamental units of analysis for the CNN.

These image patches are extracted from these downsampled images. The high-resolution channel utilizes input segments from the images with original resolution. It then extracts high-level features from these segments. The second and third channels use patches downsampled from the images.

The extraction of smaller patches allows the network to focus on local features while reducing the computational burden. The size of these patches is carefully chosen to balance the need for sufficient contextual information with the limitations of available memory and processing power. Patch extraction helps in extracting high-level and low-level features.

The patches are then fed into the three-channel CNN, where they undergo a series of convolutional, pooling, and non-linear activation operations. These operations extract relevant features from the patches, gradually building a hierarchical representation of the liver anatomy.

Downsampling is done to provide contextual information to the model. These different input types are combined in the fully connected layers.

Convolutional Layers and Feature Extraction

Convolutional layers form the heart of Deepmedic's feature extraction process. These layers apply a set of learnable filters to the input patches, convolving them to produce feature maps that highlight specific characteristics within the image. Each convolutional layer learns to detect different features, such as edges, textures, and patterns. The stacking of multiple convolutional layers allows the network to learn increasingly complex and abstract features, gradually building a hierarchical representation of the liver anatomy.

After each convolutional layer, a non-linear activation function is applied to introduce non-linearity into the network. This non-linearity is essential for learning complex relationships between features and enabling the network to model the intricate variability present in medical images. Common activation functions include ReLU (Rectified Linear Unit) and its variants.

High Level Feature Extractions: High level features are extracted using a series of convolutional layers in order to extract features.

Implementation of Deepmedic

To implement Deepmedic effectively, consider the following steps:

1. Data Preparation: Collect and curate a large, diverse dataset of CT scans with accurate liver segmentations. Preprocess the data by normalizing intensity values and resampling images to a consistent resolution.
2. Model Training: Train the Deepmedic architecture using the prepared dataset. Experiment with different hyperparameter settings, such as learning rate, batch size, and number of epochs, to optimize performance.
3. Evaluation and Validation: Evaluate the trained model on a separate validation set to assess its generalization ability. Fine-tune the model based on the evaluation results.
4. Inference and Deployment: Deploy the trained model for automated liver segmentation in clinical settings. Integrate it into existing medical imaging workflows for seamless integration.

Detailed documentation and tutorials are often available with Deepmedic distributions and related research Papers.

Licensing Options

Pricing for Deepmedic can vary depending on the specific implementation and licensing agreements:

• Academic Licenses: Often available at a reduced cost or free for research and educational purposes.
• Commercial Licenses: Required for use in clinical or commercial settings, with pricing varying based on factors such as the number of users, deployment environment, and support level.
• Open-Source Options: Some implementations of Deepmedic may be available under open-source licenses, allowing for free use and modification.

Contact the software vendor or development team for detailed pricing information.

Key Capabilities

Deepmedic offers a range of core features designed to facilitate accurate and efficient liver segmentation:

• Multi-Channel Architecture: Leverages both high-resolution and low-resolution channels to capture fine details and global context.
• Convolutional Feature Extraction: Employs convolutional layers to automatically learn relevant features from CT images.
• Robust Training: Utilizes data augmentation and appropriate optimization techniques to enhance model robustness and generalization.
• Automated Segmentation: Provides automated liver segmentation, reducing the need for manual delineation.
• Evaluation Metrics: Offers comprehensive evaluation metrics to assess segmentation performance.

Applications in Clinical Settings

Deepmedic's liver segmentation capabilities find application in various clinical scenarios:

• Surgical Planning: Assisting surgeons in pre-operative planning by providing accurate anatomical information.
• Disease Diagnosis: Aiding in the diagnosis of liver diseases by facilitating the detection and quantification of abnormalities.
• Treatment Monitoring: Tracking the effectiveness of treatment by monitoring changes in liver volume and structure.
• Research: Serving as a valuable tool for researchers studying liver anatomy, pathology, and treatment outcomes. It can significantly help with liver analysis and surgical planning through its accurate segmentation.
